Phase I Electric Dirt Bike

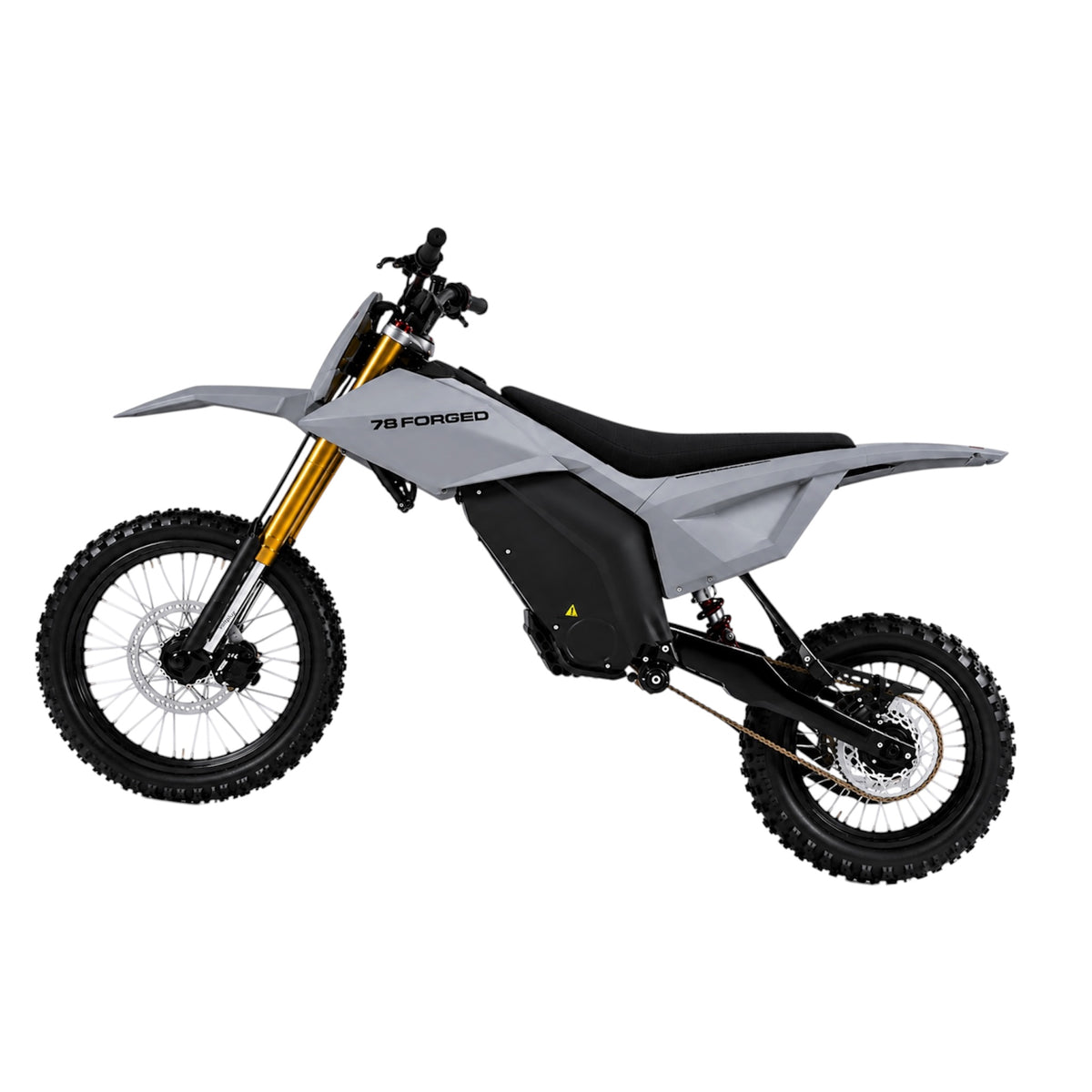

78 Forged Phase I Electric Dirt Bike

The 78 Forged Phase I is a high-performance electric dirt bike designed for off-road and recreational riding.

Performance

• Peak Power: 4,500W / 4.5kW
• Nominal Power: 2,000W / 2.0kW
• Motor: 60V PMSM
• Motor Waterproof Rating: IP67
• Torque: 35 Nm at Motor Shaft
• Controller: 80A Vector Controller
• Maximum Speed: Up to 45 MPH

Riding Modes

• Mode 1: Up to 25 MPH
• Mode 2: Up to 35 MPH
• Mode 3: Up to 45 MPH

Battery

• Battery: 60V 20Ah Lithium-Ion
• Battery Capacity: 1,200Wh
• Battery Cells: Samsung 21700
• Battery Waterproof Rating: IP67
• Charger: 60V 5A
• Estimated Maximum Range: Up to 40 Miles in Mode 1
• Estimated Mode 3 Range: Up to 20 Miles

Suspension

• Front Suspension: Hydraulic Fork
• Front Travel: 120mm
• Rear Suspension: Hydraulic Shock
• Rear Travel: 65mm

Brakes

• Front Brake: Hydraulic DOT Brake
• Rear Brake: Hydraulic DOT Brake
• Front Rotor: 190mm
• Rear Rotor: 190mm

Wheels & Tires

• Front Tire: 60/100-14
• Rear Tire: 80/100-12

Drivetrain

• Chain: 420
• Front Sprocket: 11T
• Rear Sprocket: 53T

Frame & Dimensions

• Frame Material: Steel
• Seat Height: 28 Inches
• Wheelbase: 44.4 Inches
• Ground Clearance: 11 Inches
• Curb Weight: 119 lbs
• Maximum Load: 170 lbs

Display

• TFT Color Display

Important Safety & Legal Notice

OFF-ROAD / RECREATIONAL USE: This electric dirt bike is designed primarily for use on private property and designated off-road riding areas.

This product should not be assumed to be street legal. Registration, licensing, equipment, age, helmet, and riding requirements vary by state and local jurisdiction. The buyer is responsible for checking and following all applicable laws before operating the vehicle.

Always wear an approved helmet, eye protection, gloves, protective clothing, and other appropriate riding equipment.

Maximum speed, range, acceleration, and other performance figures are manufacturer estimates and may vary based on rider weight, terrain, temperature, battery charge, tire pressure, riding mode, and other conditions.

Product specifications may be updated by the manufacturer without notice. VoltPlug LA recommends confirming all applicable rules and regulations before purchase and operation.
